Magnetic Assembly

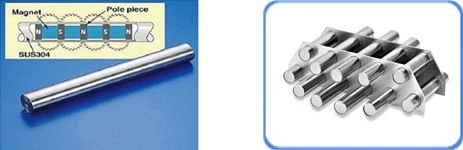

1. Magnetic Filter

These handy magnetic Filter make clean up a snap! Pick up debris, small ferrous parts, metal shavings, chips, or just anything magnetic - a real time saver for workshop and machines cleaning. They have stainless steel tubes with strong Neodymium magnets inside and handle is black plastic. Pull the plunger to release the held material and it is easy to use. The diameter we make now is from 20 to 30mm and the length is from 300 to 60

Magnetic Filter

2. Permanent Magnetic Lifter
BKMAG supply 7 standard models available from PML-100 to PML-6000 and we also produce this product per custom-made! These strong lifting magnets get the job done quickly and efficiently and are easy to use. Nothing could be easier or safer and you simply attach the lifter onto the crane hook, lower the lifter onto the work piece, turn the lever to the "ON" position and then lift the component and unload the components only by turning the lever to the "OFF" position.

We offer a range of 7 heavy-duty permanent magnetic lifters designed to provide maximum safety for a wide range of lifting applications, up to 6000 Kgs. A safety catch ensures the lifter cannot be turned off automatically. These lifters comply with EC council directive 98/37/EC.

These permanent magnetic lifters can be used on flat or round ferrous work pieces. They can be combined with transporting hoists or integrated as part of a load or unload system. The flexibility of these powerful lifting magnets is limited only by your imagination! Contact Us Please if the size you need is not listed below and we will produce this kind of products

according to your special requirement without a probem.
Model Rated lifting
strength Cylindrical lifting strength Max pull-off strength L B H R Operation
temperature Ddad weight

Model

Rated lifting
strength

Cylindrical lifting strength

Max pull-off strength

L

B

H

R

Operation
temperature

Ddad weight

(kgf)

(kgf)

(kgf)

(º C)

(kg)

PML-100

100

50

350

64

92

97

126

< 80

3

PML-300

300

150

1050

92

162

91

155

< 80

10

PML-600

600

300

2100

122

232

117

196

< 80

24

PML-1000

1000

500

3500

176

258

163

285

< 80

50

PML-2000

2000

1000

7000

234

378

212

426

< 80

125

PML-3000

3000

1500

10500

286

458

261

521

< 80

220

PML-6000

6000

3000

21000

430

600

355

180

< 80

420

Permanent Magnetic Lifter Permanent Magnet Motor Components

3. Permanent Magnet Motor Components
BKMAG supply pre-assembled motor parts with glued permanent magnets and metal body according to customers’requirements .we are a manufacturer of permanent magnets for many years;you don’t have to worry about another components, quality inspection etc… Because we have modern assembly line and first rate machining equipments,including CNC lathe, internal grinder, plain grinder, milling machine,etc. Modern inspecting techniques and stricted quality management system ensure us to supply high quality products to you.We will supply a complete m0tor parts or Magnetic coupling that is ready for the fine finishing by you, you can focus your attention to the fine job. .It is a cost-saving solution for clients

Magnetic Filter Permanent Magnet Motor Components magnetic filter holder

  • Gun Magnet

    Quick shot magnets are durable gun mounting devices that allow the user to discretely conceal their firearm while making for a faster reaction time than other gun storage techniques.Specifications1.Precise dimension2.Various shape3.Stable performance4.Good corrosion resistance5.Easy to mass productionOur Advantages1. Strict quality control: rich experienced QC team guarantees 100% qualified product.2. Advanced technology: utilizes new Sintered NdFeB magnet techniques and equipment such as strip casting, HDDR technology.3.we provide various grades.4. Strong production capacity: we can guarantee...

  • Magnetic Filter

    These handy magnetic Filter make clean up a snap! Pick up debris, small ferrous parts, metal shavings, chips, or just anything magnetic - a real time saver for workshop and machines cleaning. They have stainless steel tubes with strong Neodymium magnets inside and handle is black plastic. Pull the plunger to release the held material and it is easy to use. The diameter we make now is from 20 to 30mm and the length is from 300 to 60.Specifications1 Sinter NdFeB patent2 Competitive price3 Disc shape4 Rare earth Magnetic filterDetails1.The third-generation rare earth magnets--NdFeB permanent magn...

  • Permanent Magnetic Lifter

    BKMAG supply 7 standard models available from PML-100 to PML-6000 and we also produce this product per custom-made! These strong lifting magnets get the job done quickly and efficiently and are easy to use. Nothing could be easier or safer and you simply attach the lifter onto the crane hook, lower the lifter onto the work piece, turn the lever to the "ON" position and then lift the component and unload the components only by turning the lever to the "OFF" position. We offer a range of 7 heavy-duty permanent magnetic lifters designed to provide maximum safety for a wide ...

  • Permanent Magnet Motor Components

    BKMAG supply pre-assembled motor parts with glued permanent magnets and metal body according to customers’requirements .we are a manufacturer of permanent magnets for many years; you don’t have to worry about another components, quality inspection etc… Because we have modern assembly line and first rate machining equipments,including CNC lathe, internal grinder, plain grinder, milling machine,etc. Modern inspecting techniques and stricted quality management system ensure us to supply high quality products to you.We will supply a complete m0tor parts or Magnetic coupling that is ready for th...

  • Magnetic Ball Joints

    A holding device used for cameras, light fixtures, optical devices, and other applications. The magnetic ball joint assembly allows the steel ball a full 360° rotation on a 180° axis. This is made possible by the combination of a steel ball (10 mm diameter) and a powerful rare earth magnet contained in the magnet cylinder. The ball comes threaded as in the diagram for different sizes.For magnetic ball joints with other dimensions please consult us for further information.Operating temperature:Max. 100 °CTolerances:KL/GL ± 0,5 mmD Ø ground, tolerance h6 (Exception Type K8)otherwise ge...
