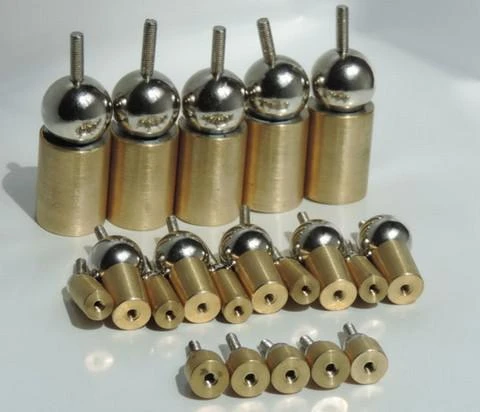

Magnetic Ball Joints

A holding device used for cameras, light fixtures, optical devices, and other applications.

The magnetic ball joint assembly allows the steel ball a full 360° rotation on a 180° axis. This is made possible by the combination of a steel ball (10 mm diameter) and a powerful rare earth magnet contained in the magnet cylinder. The ball comes threaded as in the diagram for different sizes.

For magnetic ball joints with other dimensions please consult us for further information.

Operating temperature:
Max. 100 °CTolerances:
KL/GL ± 0,5 mm
D Ø ground, tolerance h6 (Exception Type K8)
otherwise general tolerance  ± 0,1 mm

  magnetic ball joint


Type

K Ø
(Ball)

D Ø
(Magnet)

KL

L

G

GL

IG

IGL



K8

8,0

12,5 ± 0,05

18,0

12,0

-

-

-

-

Ball with inner thread
M 4/3,5 mm deep without
thread IG on the rear



















Holding force

10,0 N

(1,0 kp)

KD310

10,0

10,0

28,0

20,0

M3

12,0

M3

5,0

Holding force

18,0 N

(1,8 kp)

KD312

12,0

10,0

30,5

20,0

M3

12,0

M3

5,0

Holding force

18,0 N

(1,8 kp)

KD413

13,0

13,0

31,0

20,0

M4

12,0

M4

6,0

Holding force

40,0 N

(4,0 kp)

KD418

18,0

13,0

36,0

20,0

M4

12,0

M4

6,0

Holding force

40,0 N

(4,0 kp)

KD516

16,0

16,0

34,0

20,0

M4

12,0

ohne

-

Holding force

70,0 N

(7,0 kp)

KD625

25,0

20,0

47,0

25,0

M5

16,0

M5

5,0

Holding force

150,0 N

(15,0 kp)

KD725

25,0

25,0

56,0

35,0

M5

16,0

M5

7,0

Holding force

200,0 N

(20,0 kp)
