Sintered SmCo Magnets

Samarium Cobalt (SmCo) magnets offer designers a tremendous combination of extremely high Magnetic properties, outstanding thermal stability and excellent corrosion resistance. As part of the rare earth group of permanent magnets, Samarium Cobalt (SmCo) magnets typically fall into two families of materials. They include rare earth SmCo5 and Sm2Co17, and are commonly referred to as 1:5 and 2: 17 materials.

Samarium Cobalt magnets are highly resistant to corrosion and require no special surface treatment. This makes Samarium Cobalt an excellent choice for compact designs where high temperature environments may be present.

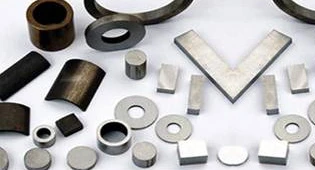

Samarium Cobalt (SmCo) magnets

SmCo Magnet Product performance parameters

Specifications
1. high work temperature
2. superior resistance
3. widely used in magnetic treatment,

Advantages
1) Constitution: 35% Sm, 60% Co and 5% Fe & Cu
2) Excellent resistance to corrosion, no coating is needed for the surface protecting.
3) SmCo is suitable for machines with high magnetic requirements and good for strict working environment requirements.
4) All sorts of SmCo are used in the electronic magnetron, magnetic transmission, magnetic treatment, etc.

Matersal Code Remanence Coercivity
force
Intrinsic
Coercivity
force
Max
onergy
product
Cune
temp
Max
Operating
Temp
- - Br bMc Hc (BM)max TC TW
T KGs KA/m KOe KA/m KOe HJ/m2 MGOe °C °C
Sintered
SmCo
(1:5)
ZBX-18 0.85 8.5 620 7.8 ≥1350 ≥17 145-150 17-19 750 250
ZBX-20 0.90-0.96 9.0-9.6 653-717 8.2-9.0 1194-1513 15-19 150-175 19-22 750 250
ZBX-24 1.0 10.0 680 8.5 ≥1195 ≥15 175-190 22-24 750 250
ZBX-26 1.02 10.2 750 9.5 ≥1195 ≥15 195-215 24-26 750 250
SmCo
(2:17)
ZBXG-24 0.95-1.02 9.5-10.2 637-732 8.0-9.2 1433-1990 18-25 175-190 22-24 800 300
ZBXG-26 1.02-1.05 10.2-10.5 748-796 9.4-10.0 1433-1990 18-25 195-215 24-26 800 300
ZBXG-28 1.05-1.08 10.5-10.8 756-796 9.5-10.0 1433-831 18-23 205-220 26-28 800 300
ZBXG-30 1.08 10.8 780 9.8 ≥955 ≥15 220-240 28-30 800 300
Bonded
SmCo
(1:5)
ZB-6 0.4 4.0 280 3.5 800 10 30-50 4-6 / 120
ZBb-10 0.5 0.5 320 4.0 800 10 50-65 6-8 / 120
SmCo
(2:17)
ZBG-10 0.6 0.6 360 4.5 800 10 65-80 8-10 / 120
ZBG-12 0.7 0.7 400 5.0 800 10 80-95 10-12 / 120
